plastic housing ip20 triac dimmable constant current led driver manufacturers for indoor

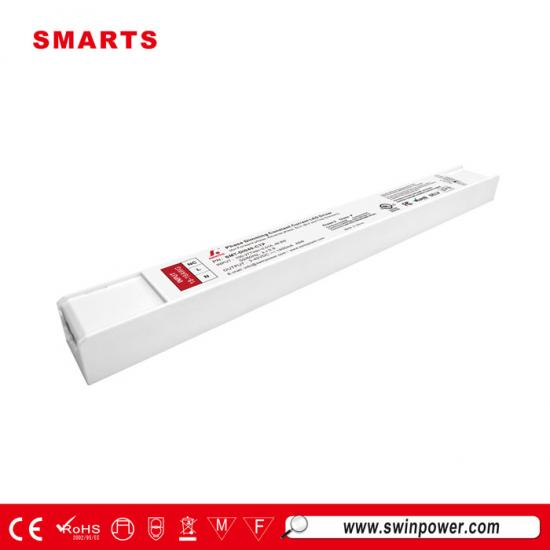

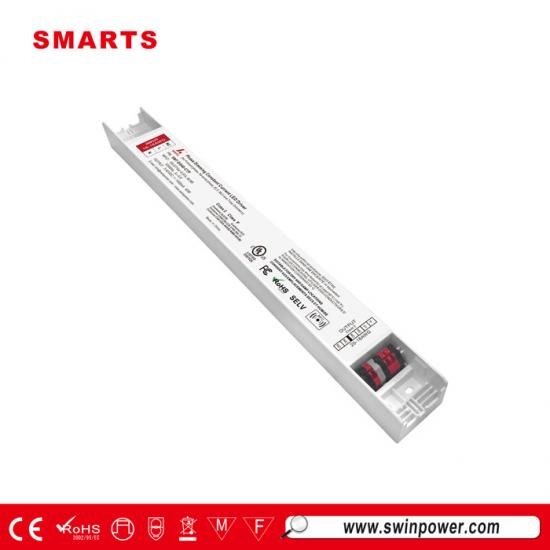

This constant current triac dimmable 40W LED power supply features a fully protected plastic housing and is ideal for indoor LED lighting installations in small spaces. It utilizes free air cooling and complies with global safety lighting regulations. It comes with a 7-year warranty.
Specification
| Model | SMT-DI040-CTP | |
| Certificate | UL / cUL / FCC / Class P | |
| Output | DC Voltage | 3-42V |
| Current Regulation | ±2% | |
| Current Ripple | <5% | |
| Overshoot Current | <0.1% | |
| Rated current | 400-1400mA(The output current can be adjusted arbitrarily within this range using NFC) | |
| Rated power | 40W | |
| Input | Voltage Range | 100-277VAC |
| Frequency Range | 47 - 63Hz | |
| Power Factor (Typ.) @ full load | >0.98@120VAC >0.91@277VAC | |
| THD(Typ. ) @ full load | ≤16%@120VAC ≤23%@277VAC | |
| Efficiency(Typ.) @ full load | >82%@120VAC >83%@277VAC | |
| AC Current (Max.) | 0.51A | |
| Inrush Current (Typ.) | 3.5A, 50%, 28us @120VAC; 9A, 50%, 25us @277VAC | |
| Leakage current | <0.5mA | |
| Protection | Short Circuit | Constant current mode, can automatically recover after abnormal elimination |
| Over Load | ≤110% Hiccup mode,recovers automatically after fault condition is removed | |
| Over temperature |
Ambient temperature over 55℃±5℃ to reduce output to 50%;
The ambient temperature drops to 45℃ ±5℃and automatically recovers; Ambient temperature over 60℃±5℃ to reduce output to 0%; The ambient temperature drops to 45℃ ±5℃and automatically recovers; |
|
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) |
| Working Humidity | 20 - 90%RH non-condensing | |
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |
| Vibration | 10-500Hz, 2G 12 minutes/cycle, X, Y, Z axes each 72 minutes | |
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13 (US);E495946 |
| Withstand voltage | I/P-O/P: 3.75KVac | |
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | |
| Surge Immunity Test | AC Power Line:Differential Mode 2KV | |
| EMC Emission | FCC 47 CFR Part 15, Subpart B (US) | |
| Others | Net Weight | 0.3KG |
| Dimension | 324.7*34.8*24.1mm(L*W*H) | |
| Packing | 340*270*195mm 50pcs /CTN | |
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | |
| 2. Tolerance: includes set up tolerance and load regulation . | ||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | ||
|
|
|
|
|
Mechanical Specification

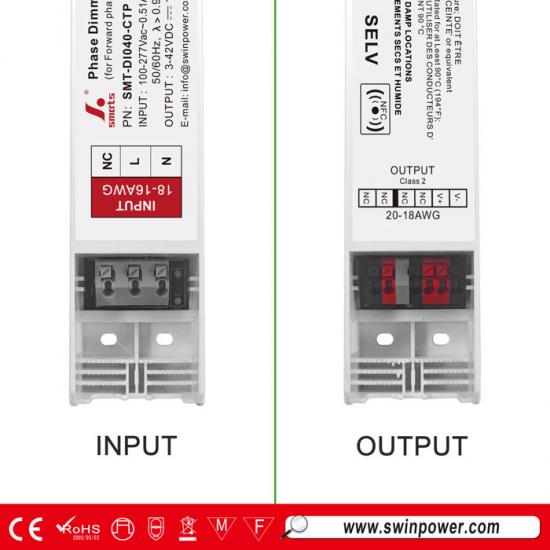

| American wire gauge | |
| LN30 | |
| Input wire | Black (L) White (N) Green(G) (3C*18AWG) |
| Output wire | Red (V+) Black(V-) (2C*18AWG) |
| Remarks: | |
Warm tip s :
Recommended Max. Carrying Current (A) = wire diameter(mm 2 ) x 10A/mm 2 .
For example: 1mm 2 output cable, Recommended Max. Carrying Current (A) = 1mm 2 x 10A/mm 2 =10A
Dimming Connecting Diagram
Using one dimming ---TRIAC/Phase cut dimmin g
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer or lighting system.
2. Working with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers or light system.
Please try to use dimmers with power at least 2 times as the output power of the driver.
NFC function：
Pour un fonctionnement détaillé, veuillez vous référer au manuel de l'application ProNFC demandé auprès du représentant commercial de Smarts Electronics.
1. Scannez le code QR ci-dessous pour télécharger l'application ProNFC
Méthodes de téléchargement pour les appareils iOS :
＊ les utilisateurs iOS peuvent télécharger via le lien QRcode (Figure 1)
＊ Recherchez le nom de l'application ProNFC dans l'App Store (Figure 2)
Application ProNFC
Appareils portables NFC
Téléchargement IOS
Téléchargement Android
Produits connexes
|

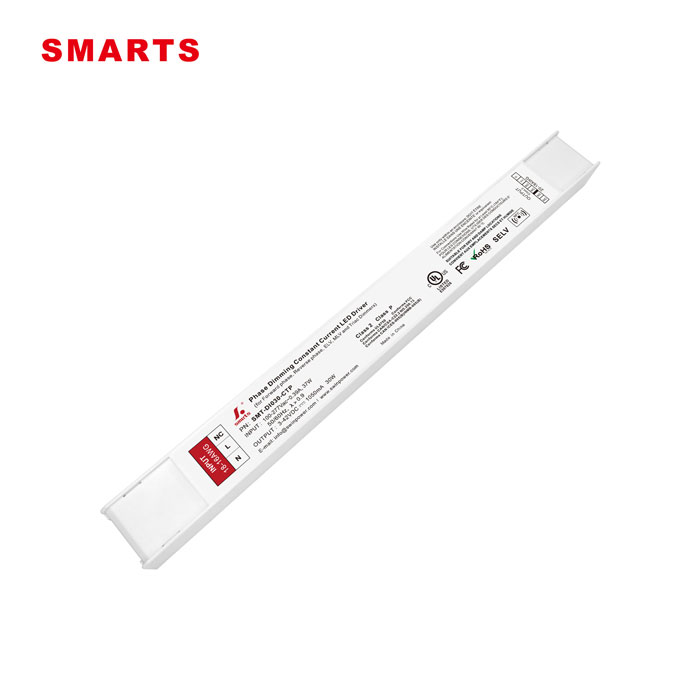

Ce Alimentation LED 30 W à intensité variable TRIAC Doté d'une fonction PFC active intégrée, il offre un rendement allant jusqu'à 83 %. Son boîtier en plastique assure une bonne dissipation thermique et convient parfaitement aux installations d'éclairage LED en intérieur et en extérieur.
